When upgrading or replacing your vehicle’s lighting system, choosing the correct bulb type is more than a simple swap. Among the most common halogen bulb models used worldwide are H1 and H3. While they may look similar at first glance, their performance characteristics, beam applications, and installation structures are quite different.
In this in-depth guide, we’ll break down H1 vs H3 headlight bulbs in terms of brightness, beam pattern, compatibility, and upgrade potential—helping you make the right decision for your vehicle or lighting project.
The H1 headlight bulb is a single-filament halogen bulb widely used in both high-beam and low-beam applications. It features a P14.5s base and a single contact terminal, making it easy to install in reflector or projector housings designed for H1 compatibility.
Single filament design
Typically rated at 55W (12V systems)
Compact structure
Strong, focused beam pattern
Common in high beam setups
Because of its compact design and direct mounting base, H1 bulbs are frequently found in:
Passenger cars
SUVs
Motorcycles
Auxiliary driving lights
The H3 headlight bulb is also a single-filament bulb but differs significantly in structure. It includes an attached wire lead instead of a traditional metal base contact. This design allows greater flexibility in tight housing environments.
Single filament
Usually 55W (12V systems)
PK22s base
External wire connector
Compact and heat-resistant design
H3 bulbs are commonly used in:
Fog lights
Auxiliary lamps
Some high-beam systems
Aftermarket driving lights
Let’s compare H1 and H3 bulbs across critical performance categories.
Both H1 and H3 halogen bulbs typically produce:
Around 1,450–1,550 lumens (standard 55W halogen versions)
In pure halogen form, brightness levels are very similar. However, beam performance depends more on housing design than on the bulb itself.
H1 bulbs are often used in reflector or projector systems designed for long-range visibility.
H3 bulbs are commonly used in fog lights where beam spread and low mounting position matter more than distance.
When upgraded to LED equivalents, both formats can significantly increase output—often exceeding 6,000 lumens per pair, depending on chip quality and thermal design.
H1 Applications:
High beam headlights
Some low beam projector systems
Long-distance illumination
H3 Applications:
Fog lights
Auxiliary driving lamps
Compact lighting housings
Because H3 bulbs use a flying lead wire, they are easier to install in small fog light enclosures. H1 bulbs, with their fixed metal base, are better suited for precision-focused headlamp optics.
The most noticeable difference between H1 and H3 bulbs lies in their connection style:
| Feature | H1 Bulb | H3 Bulb |
|---|---|---|
| Electrical Connection | Single terminal on base | Wire lead with connector |
| Mounting Style | Lock-in base | Retaining clip + wire |
| Typical Use | Headlight high beam | Fog light / auxiliary |
Important:
H1 and H3 bulbs are not interchangeable. Even if wattage and voltage are identical, the mounting base and connector design prevent direct swapping.
Always check your vehicle owner’s manual or OE specification before purchasing replacement bulbs.

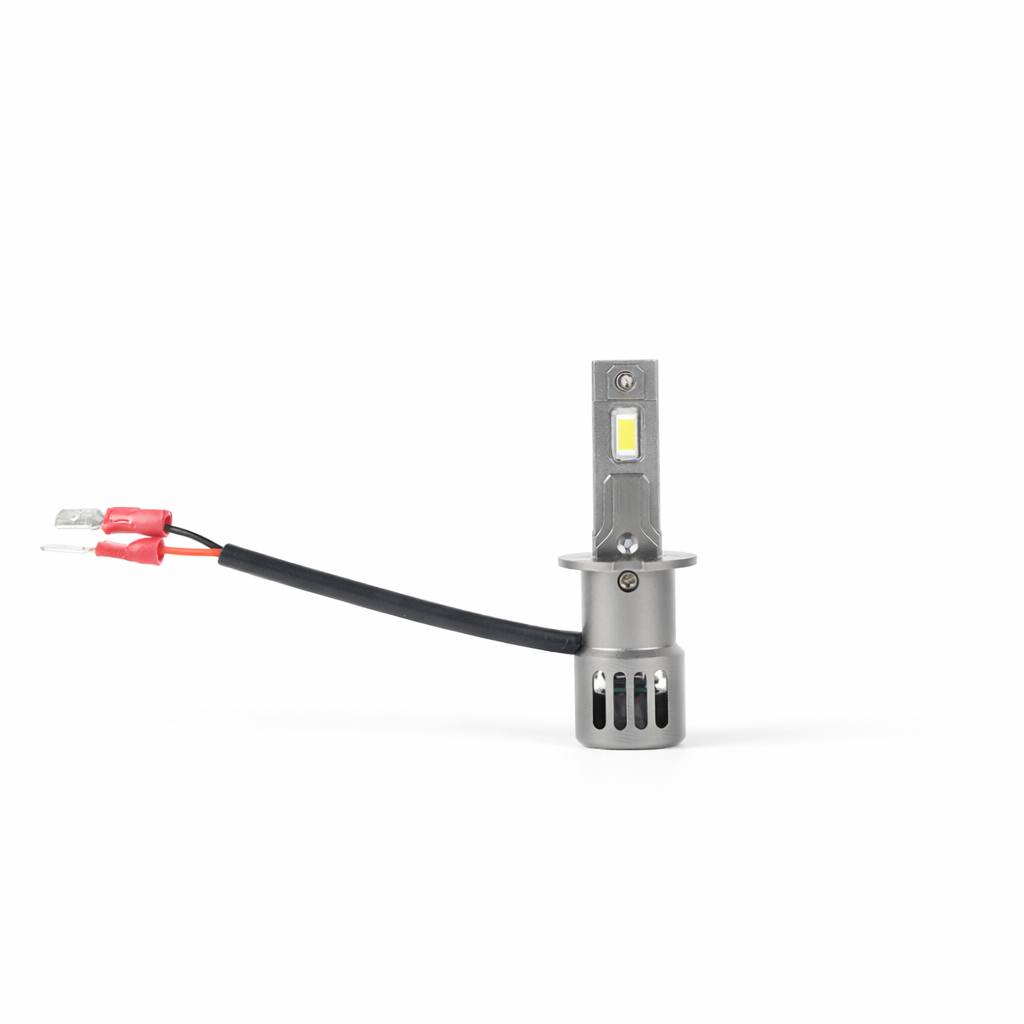

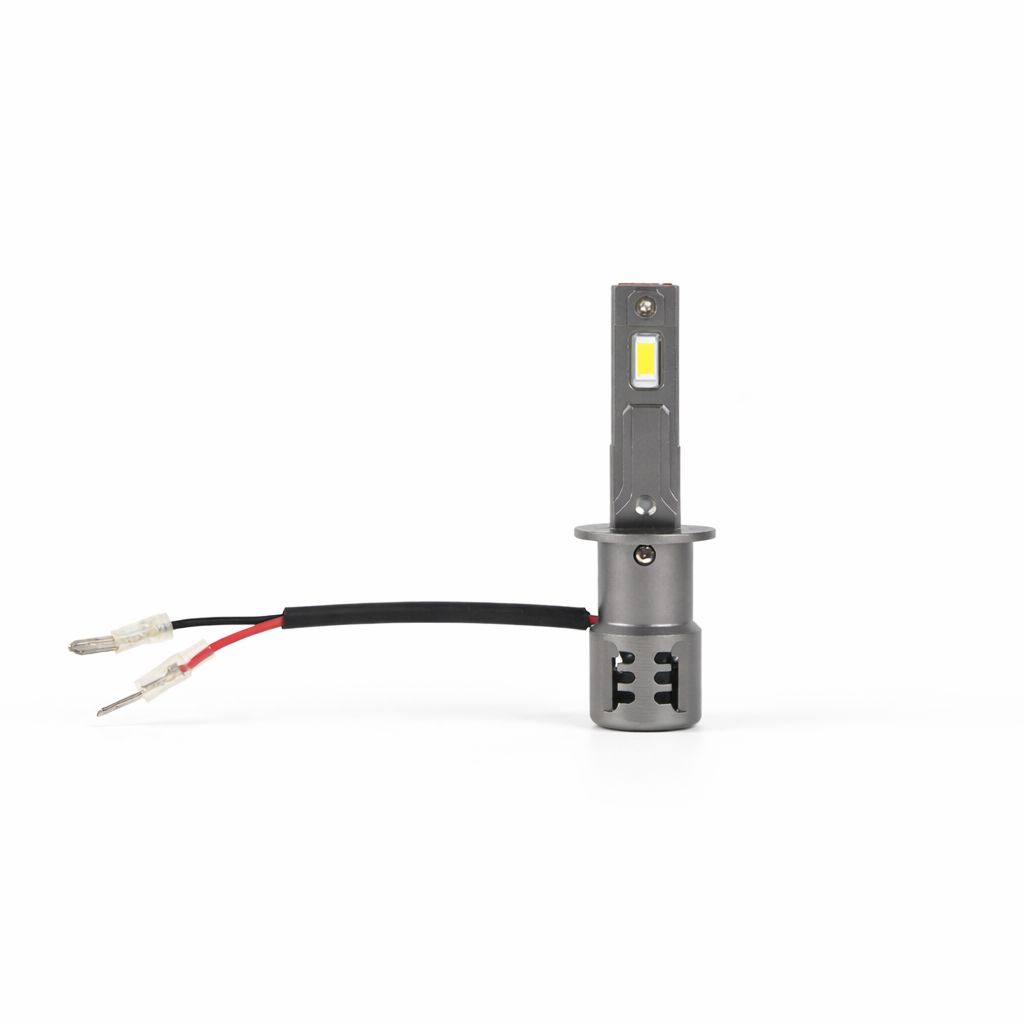

Modern drivers increasingly replace traditional halogen H1 or H3 bulbs with LED alternatives. LED versions provide:
Higher luminous efficiency
Lower power consumption
Longer lifespan
Whiter color temperature (6000K typical)
However, proper heat dissipation and beam alignment are crucial. A poorly designed LED replacement can cause glare or uneven beam distribution.
For best results:
Choose CANBUS-compatible designs
Ensure correct chip positioning to mimic halogen filament location
Verify housing compatibility
There is no “better” option universally—only what fits your vehicle’s design and lighting purpose.
Choose H1 if:
Your vehicle specifies H1
You need strong high-beam performance
You are upgrading projector headlights
Choose H3 if:
You are replacing fog lights
Your housing requires a wire-lead bulb
You need compact fitment
Performance ultimately depends on bulb quality, housing design, and proper installation.
Assuming wattage equals brightness
Higher wattage does not always mean better performance—and may overload wiring.
Ignoring fitment differences
H1 and H3 bases are structurally different.
Installing LED without beam alignment check
Improper alignment can reduce visibility and increase glare.
Overlooking regional regulations
Some regions restrict certain color temperatures or high-output bulbs for road use.
Understanding the difference between H1 and H3 headlight bulbs ensures better purchasing decisions, improved night visibility, and safer driving conditions.
Both bulb types have stood the test of time in halogen systems, and both now benefit from modern LED technology upgrades. The key is choosing the right fit for your vehicle and selecting a high-quality lighting solution that balances brightness, beam precision, and durability.
If you're considering an upgrade for your automotive lighting system, always start with fitment verification—and invest in performance-engineered solutions designed specifically for your application.
